Used for BIg Tractor/Agriculture Machinery/Construction Manchinery FD-807

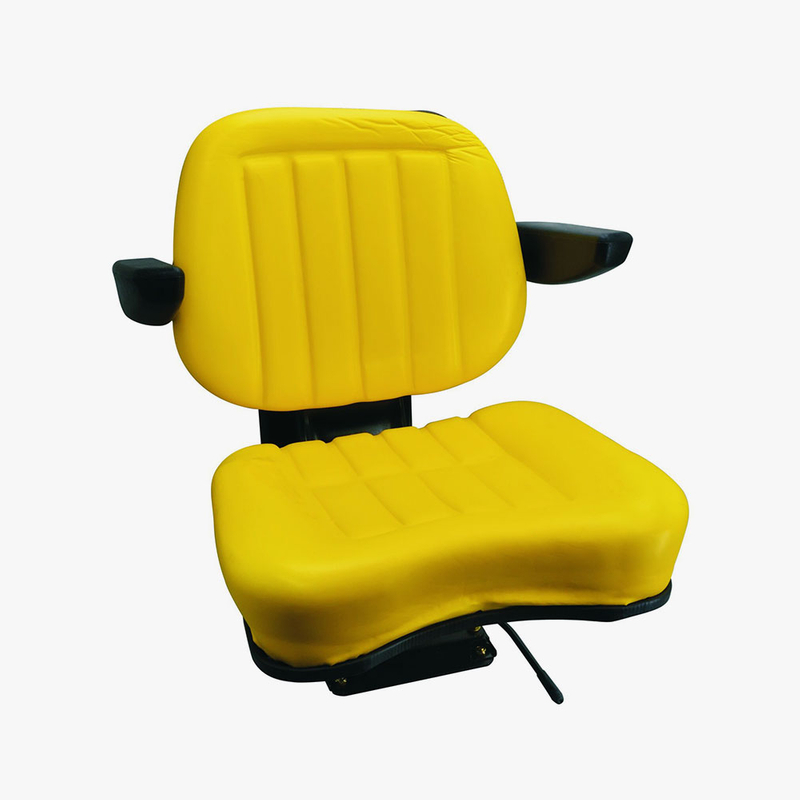

FD-807 is designed for small and medium-sized tractors and other agricultural machinery design of the driver's seat.Its mechanical suspension mechanism is made up of two tensile spring and a hydraulic shock absorber.Cushion and backrest adopts vacuum foaming sponge manufacturing a molding technology, the surface material for black PVC.
Availability:
Quantity:
facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
sharethis sharing button

Technical features:

Before and after the adjusting range is 150 mm

Shock absorber's schedule is 60 mm

Shock absorbing device according to body weight between 50-130 kg of stepless adjustment


Optional accessories:

headrest

Seat belts

Adjustable armrest


Specification:

1. Material: PU foam material (memory foam)+PVC leather

2. Color: Black, or customized

3. Weight adjustment 50-120kg

4. Semi_suspension

5. Slide: Fore/aft adjustment 150mm; Each step 15mm

6. Backrest adjustment 15°

5. OEM accepted.

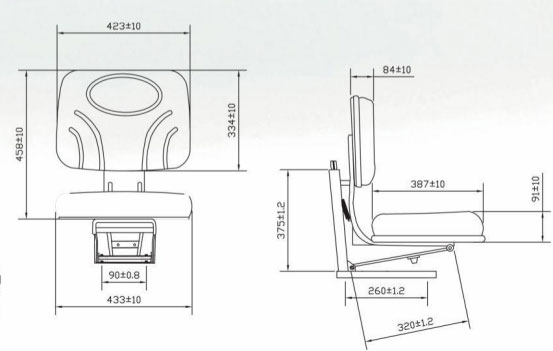

4.2

Model No.

FD-807

Type

General Seat

Material

PVC

Position

Front Row

Leatheriness

A Class

Car Make

Tractors, Agricultural Machinery

Condition

New

Applicable Models

General

Customization

Available

Suitable Object

Engineering Vehicles

Optional Accessories

Seat belts

Breadth

500mm

Tranport package

Carton

Specification

CCC

Trade Mark

OEM

Original

Hebei,China

HS Code

94012090

Production Capacitty

50000pcs/Year
